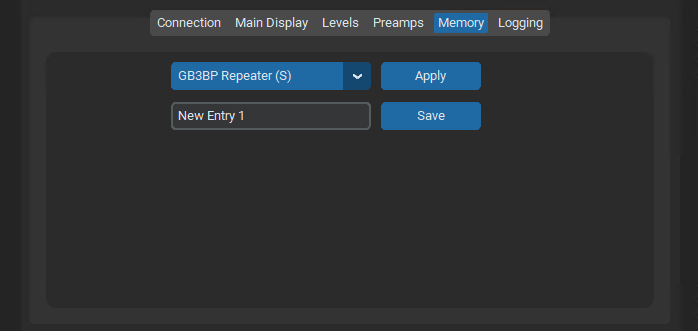

The Memory tab allows you to save and recall frequency and other radio settings enabling quick trouble free access to your favourite stations.
Controls
- Memory Selector: Dropdown to select saved memories.
- Apply: Loads the selected memory settings.
- New Entry: Enter a name for a new memory.
- Save: Saves current settings to the entered name.
- Using the same name as an existing entry will update the settings for that entry.
Usage
To save a memory, set the desired frequency in the Main Display tab, then enter a name and click "Save". To recall, select a memory and click "Apply".
The application saves memory settings in memories.csv file located in the {YOUR_HOME_DIR}/Pycom directory. You can download a sample file with a few satellites already set up from here
Name,Mode,Selected VFO,RX Frequency,TX Frequency,RX Op Mode,TX Op Mode,RX Data,TX Data,RX Filter,TX Filter,Split,Tone,Tone Freq,RIT,RIT Offset,RF Power,Internal Preamp,External Preamp,144 Ext Preamp,430 Ext Preamp,1200 Ext Preamp
SO-124 V/U FM,Sat,MAIN,436888000,145925000,FM,FM,OFF,OFF,FIL1,FIL1,OFF,OFF,,OFF,,40,OFF,ON,OFF,ON,OFF
SO-125 V/U FM,Sat,MAIN,436666000,145875000,FM,FM,OFF,OFF,FIL1,FIL1,OFF,OFF,,OFF,,40,OFF,ON,OFF,ON,OFF
GB3BP Repeater (S),VFO,A,430962600,438562500,FM,FM,OFF,OFF,FIL2,FIL1,ON,TONE,82.5,OFF,,88,OFF,ON,OFF,ON,OFF
JO-97 U/V SSB,Sat,MAIN,145855000,435100000,USB,LSB,OFF,OFF,FIL1,FIL1,OFF,OFF,,ON,-1.7,49,OFF,ON,ON,OFF,OFF
SO-50 V/U FM,Sat,MAIN,436795000,145850000,FM,FM,OFF,OFF,FIL1,FIL1,OFF,TONE,67.0,OFF,,26,OFF,ON,OFF,ON,OFF
RS-44 V/U SSB,Sat,MAIN,435640000,145965000,USB,LSB,OFF,OFF,FIL2,FIL2,OFF,OFF,,ON,-1.8,26,OFF,ON,OFF,ON,OFF
ISS V/U FM Voice,Sat,MAIN,437800000,145800000,FM,FM,OFF,OFF,FIL1,FIL1,OFF,TONE,67.0,OFF,,49,OFF,ON,OFF,ON,OFF
ISS Mode V Imaging,VFO,A,145000000,145000000,FM,FM,OFF,OFF,FIL1,FIL1,OFF,OFF,,OFF,,49,OFF,ON,ON,OFF,OFF
